Highly Portable
HD Images in 10 Seconds
9 Light Modes
5 Imaging Angles
Scroll Down

OBSERV®520x makes the invisible visible with unparalleled clarity.

See deeper levels of skin and reach the next level of skin consultations.
OBSERV®520x helps you make more informed decisions when choosing treatment plans and selecting the right products for your patients.
That’s the Sylton Promise.
Schedule a Demo

9 Different Light Modes

Get an unparalleled view into the skin layers with each light mode that showcases different skin concerns. Build your treatment plan based on insights of what goes on beneath the skin and help your patients understand how you can improve their appearance.

Daylight

Daylight

The way your skin looks with normal lighting. This can be the baseline of your consultation as this is also how a patient sees their skin.

TrueUV

True UV

Most skin imperfections are caused by anomalies in deeper skin layers. In this mode, a harmless dose of invisible UV light is radiated on the skin. Through the interaction with different cells, vessels and microorganisms, abnormalities on both epidermis and dermis will create distinguishable fluorescence patterns which stand out from surrounding healthy skin.

Woods

WOODS

In this mode, the illumination of Wood’s lamp is replicated. Short wavelength blue light is reflected by skin lipids. As a result, a light and pinkish-colored haze appears on areas (T-zone and U zone) on which the hydrolipid film is distributed and sebaceous glands are active. Additionally, thinning skin structures and (de)pigmentation become visible.

Cross Polarised

Cross Polarised

This light mode suppresses surface shine and allows a view into the skin. As the specular reflections of the skin are filtered out, a deeper view into the skin is created. Vascular and pigmentation lesions and discolorations reveal themselves clearly when the view is no longer obscured by the shiny surface of the skin.

Parallel Polarised

Parallel Polarised

With aging, the surface texture of the skin becomes rougher and pore structures become more apparent due to changes in the underlying structural and functional biochemistry of dermal and epidermal components. The parallel polarization mode enhances glare reflections of the surface texture and the microrelief of the epidermis can be analyzed in more detail without the distraction of information coming from below the surface.

Surface Texture

Surface Texture

This picture highlights the skin’s surface texture and roughness. Early signs of aging such as fine lines, wrinkles, visible pore structures, and bumpy skin including rough patches become more apparent and help to understand the overall skin’s micro-relief.

Pigmentation

Pigmentation

Vascularity

Vascularity

360 Light Mode

360 Light Mode

a.-Observ_RD_left90_daylight-scaled
a.-Observ_RD_left40_daylight-scaled
a.-Observ_RD_frontal0_daylight-1-scaled
a.-Observ_RD_right40_daylight-scaled
a.-Observ_RD_right90_daylight-scaled

5 Imaging Angles

The face is never just one-dimensional. The patented face positioning system of Observ guides you and your patient to shoot images of five different angles so even the cheek and jowl areas are visible in HD. Time and time again.

Superior Results. Made Simple.

Step 1: Initial Assessment
Use OBSERV®520 to take your client on a journey to discover their skin profile and visualize the characteristics in the various layers of their skin.

Step 2: In-Depth Consult
Show your clients more about themselves than they usually see. Create awareness of their skin concerns and help them to understand these.

Step 3: Create Treatment Plan
Create an effective treatment plan that helps your client and allows you to cross-sell your products, aided by the clear pictures you’ve taken.

Step 4: Foster Client Satisfaction
Demonstrate your competence and monitor your clients’ results by comparing their initial pictures with a new set upon their return, building a loyal customer base in the process.

Step 1: Initial Assessment
Use OBSERV®520 to take your client on a journey to discover their skin profile and visualize the characteristics in the various layers of their skin.

Step 2: In-Depth Consult
Show your clients more about themselves than they usually see. Create awareness of their skin concerns and help them to understand these.

Step 3: Create Treatment Plan
Create an effective treatment plan that helps your client and allows you to cross-sell your products, aided by the clear pictures you’ve taken.

Step 4: Foster Client Satisfaction
Demonstrate your competence and monitor your clients’ results by comparing their initial pictures with a new set upon their return, building a loyal customer base in the process.

Technical Specification

Physical Specifications
Dimensions (LxWxH)
12.6 x 16.9 x 24.8 in
Dimensions when packed in bag (LxWxH)
18.11 x 17.7 x 7.48 in
Weight
11.2 kg / 24.69 lbs
Technology Specifications
Illumination Modes
Daylight, Cross Polarisation, Parallel Polarisation, Wood’s, True UV
Illumination Technology
Solid state LED, 360 Light Technology
Visualisation Modes
Surface Texture, Pigmentation, Vascularity
Capturing Time
10 seconds (avg.)
iPad Control
Bluetooth 4.1. LE
Software
Observ 520x App available in App store
Additional Specifications
Power
36 Watts
Voltage
Global 110-240 V, 50-60 Hz​
Power Plug
Global plug set
Timer
Automatic
Manual Control
Through the polarisation visor

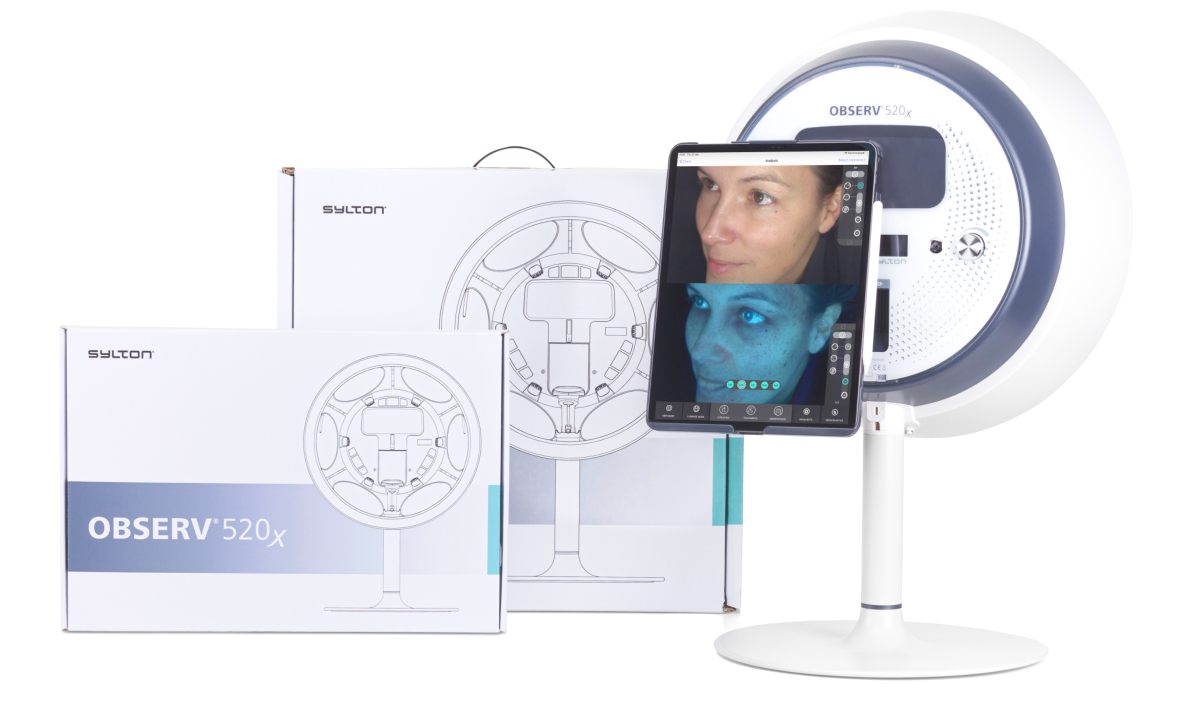

Inside the OBSERV®520x Package

Your OBSERV®520x Package contains*:

  • The Observ®520x device
  • The latest technology, including our patented ‘Face Positioning System’ for reproducible before and after pictures
  • A universal iPad visor
  • The Observ®520x travel bag
  • A practical quick reference guide for most common skin concerns
  • A skin condition guide for advanced practitioners
  • Valuable smooth set-up instructions
*The iPad is not included. Want to know if your current iPad is suited for the Observ? Please visit the bottom of our Resources Page and download our OBSERV iPad model Visor sheet.

Frequently Asked Questions

  • Will the OBSERV®520x automatically advise on treatments and products?

    Because we reveal skin concerns and possibilities for rejuvenation so clearly, the stepstone to treatment plans and product recommendations is very small. We strongly believe in the knowledge and experience of beauty experts and aesthetic professionals. They have had all the training and daily practice, so they can interpret the images of Observ far better than a ‘machine’ can. Additionally, Observ 520x and Observ 320 allow you to create your own catalogue of products and treatments from which you can recommend and thus boost your sales.

  • What is the preferred frequency of skin analysis during a treatment plan?

    In general, it is better to take more pictures than fewer. There are virtually no downsides to doing so, and your client will be happy to see their progress clearly visualized. Usually, at least 3 sets of skin analyses are taken. One to analyze the skin beforehand, one during treatment to confirm the treatment plan is working, and a final one to visualize the results.

  • What do I need if I want to start with an OBSERV®520x skin analysis?

    If you are a beauty expert or aesthetic professional, look for the nearest dealer in your country and order your Observ right away! If you don’t find a dealer in your region, contact us to send your request.

  • Is Observ safe to use?

    Yes, the Observ is specifically developed to operate in salons and clinics and meets the highest safety standards. The technology is tested and approved by acknowledged international testing labs.

  • How can I measure hydration?

    Hydration is one of many parameters that can be identified, but not measured through Observ. We don’t measure hydration, because this is a temporary situation, depending on the season, the environment and the operator, so we look for visual signs that give experts information about the skin condition. This is always more valuable in the end.

  • What is the difference between visual and quantitative measurement?

    With Observ we focus on visual diagnosis, our images are so strong and revealing that even the most subtle appearance and skin changes will become visible to the professional and the client. In addition, we think that quantitative measurements are subject to seasonal changes and the influence of the operator, while computers often lack the sensitivity of perception to pick up ‘ultra-fine’ improvements.

  • Do I need to follow a training?

    Although all our Observ devices and apps work intuitively, we advise you to contact your local dealer for all training and education options. Nowadays training can easily be followed online and there are also options for training during or after installation. Easily enrich your knowledge and become a real Observ expert!
